Experience natural cooling and freshness up close

The comfortably equipped air cooler PAE 81 with remote control ensures fresh wind and quick cooling in the heat of summer. The color of the housing in white is trendy instead of colorless, which also makes the PAE air cooler stand out from the crowd. The PAE 81 presents itself perfectly elegant with its silky matt black surface. The 4-in-1 air cooler (air cooling, ventilation, air purification and air humidification) shines with a strong cooling effect thanks to an icy-fresh air flow. The four-stage adjustable fan cools heated living rooms, winter gardens, attic apartments, sales rooms, shops, restaurants, offices and much more. turbo-fast down to comfortable room temperatures. In addition, the air coolers clean and humidify the room air in order to pamper you with clean and optimally humidified cold air.

The highlight: For space-saving storage, the PAE 81 air cooler can be easily put together from 111.5 cm to a compact 70.5 cm.

Naturally effective evaporative cooling that pays off

You know the energy-efficient honeycomb cooling technology of the Aircooler PAE 81 from nature. When a fresh breeze blows over damp skin, you immediately feel a pleasant cooling. This cooling effect is created by evaporation. The heat energy required for this is extracted from the room air, which noticeably reduces the temperature. This natural cooling principle is used by all air coolers of the PAE series with their cold water or ice water filling. As soon as the room air flows through the moist honeycomb filter, it is cooled by the extraction of heat energy, moistened with cold or ice water, cleaned of annoying lint or animal hair in the air filter and expelled into the room as an icy, fresh air stream. Without the use of chemicals, without power-hungry cooling compressors and without annoying exhaust air hoses.

The hotter the summer, the more intense the cooling effect

In contrast to air conditioning units with cooling compressors, which at some point reach their performance limits when the temperature is high, the cooling capacity of the PAE 81 even increases with increasing temperatures. The warmer it is in the room, the faster the water evaporates in the honeycomb filter and the more heat of evaporation is extracted from the air. You can therefore always rely on the cooling capacity of the air cooler to keep up with the outside temperatures.

An unbeatable team: available in two colors and performance classes - White and Black units available

With a full air throughput of 1,000 m³/h and a generous 60 liter water tank, the PAE 81 air cooler is recommended for use in rooms up to 80 m² or 200 m³.

Three times better feel-good climate: cools, refreshes and moisturises

The combined air improvement through cooling, air purification and humidification guarantees an optimally balanced living space climate. In addition, the PAE 81 strengthens the body's own immune system. Infectious viruses such as flu viruses and SARS-CoV-2 sometimes float in the room for several hours in dry heating air. In addition, there are dried out nasal mucous membranes, which actually have the task of fending off pathogens. Viruses fall to the ground faster in optimally humidified air (40 to 60 percent), and the cleaning performance of the nasal mucous membrane is improved. As a mobile humidifier, the PAE 81 convinces all year round with its powerful humidification performance of 2.8 l/h to keep the humidity permanently in a healthy range. If necessary, the Aircooler can also be used as a fan all year round without the air cooling and humidification function. In order to distribute the refreshing air flow - depending on the application - in a targeted manner or over a large area throughout the room, the cooling device has a switchable 120° swing mode of the inner vertical air outlet slats for large-area cold air distribution. The outer horizontal slats can be positioned manually according to your needs.

Turns everything up to now: big in the cooling, small in the box

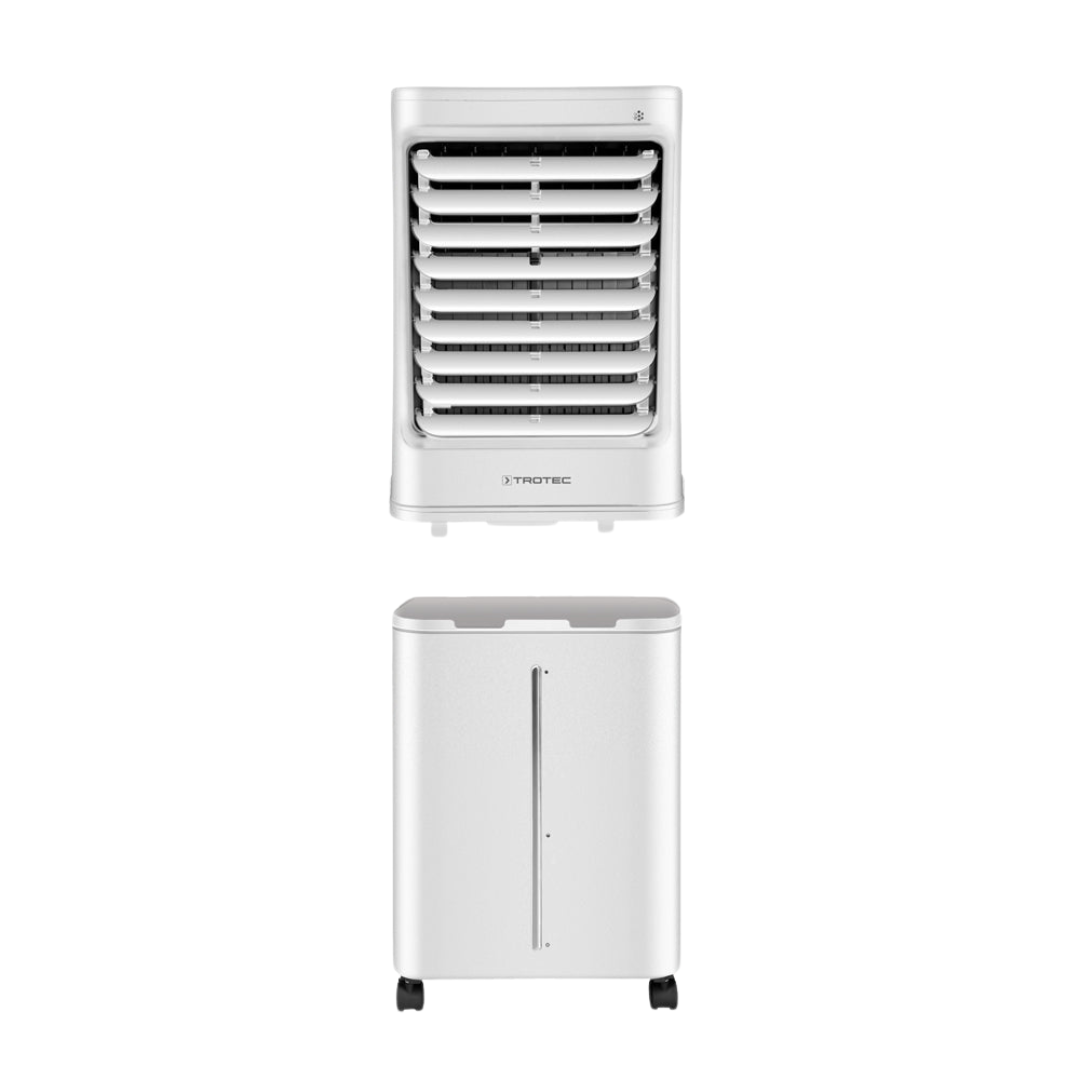

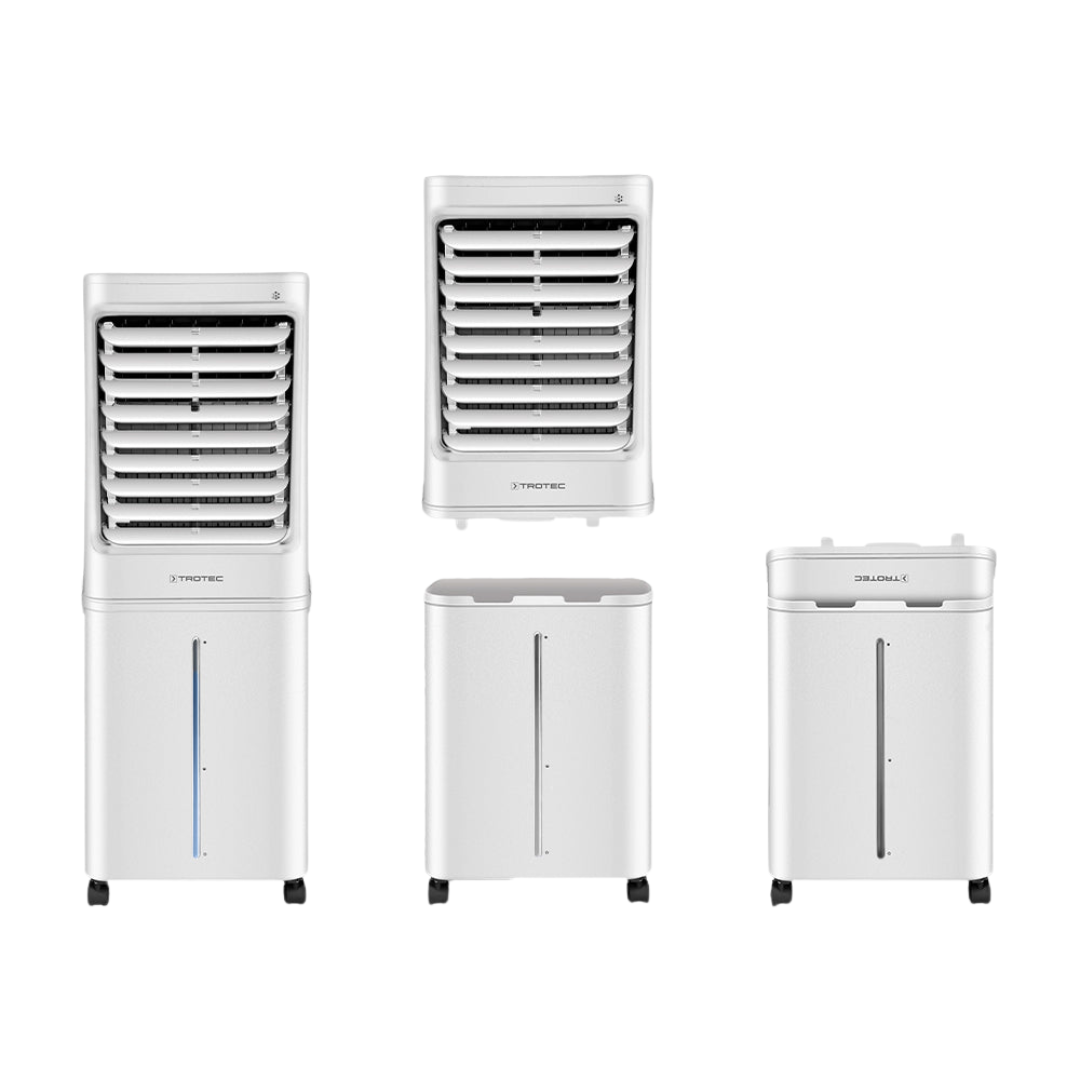

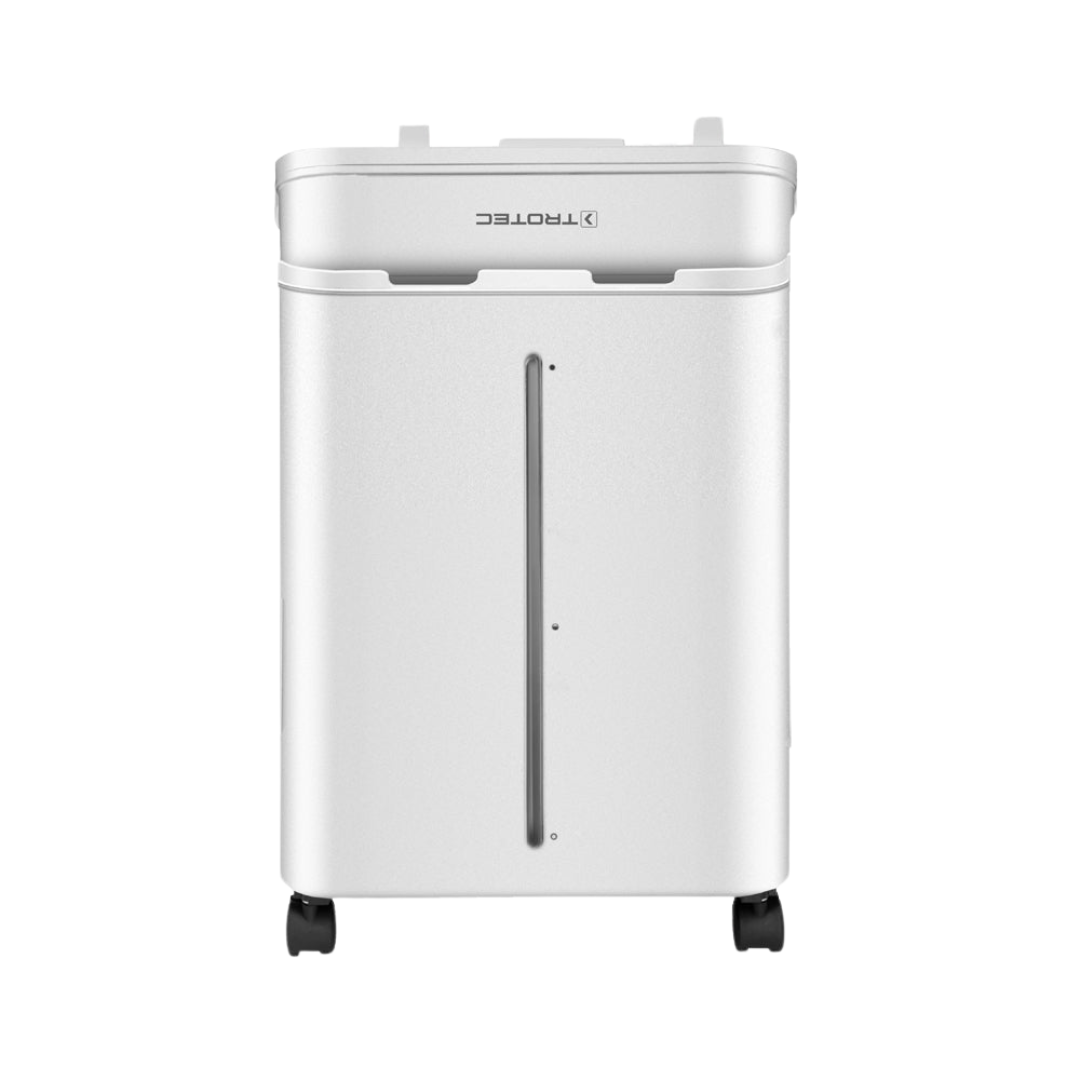

The PAE 81 shows true size in the smallest of spaces when it comes to storage and transport. The upper part of the device can be detached in just two steps and lowered upside down in the lower water tank. This reduces the device height to a cabinet-friendly 70.5 cm. The ergonomically shaped recessed grips, with which the air cooler can be easily carried from one room to the other, are just as practical.

Integrated fixed water connection for continuous commercial use

Whether for cooling or for air humidification - the integrated fixed water connection of the air cooler PAE 81 is particularly practical for continuous commercial use. The professional air cooler can be connected to the water pipe with a standard hose. This means that it can run continuously without having to refill the tank in between. The water supply via the hose is regulated fully automatically by a float switch included in the scope of delivery. The float switch and hose are child's play to assemble, without tools or an installer.

Set for comfort: 15-hour timer for switching on and off automatically

The programmable timer is twice as useful to switch the air cooler on or off fully automatically after an individually preset time. This saves unnecessary electricity costs and you never have to worry again about whether you have actually switched the device on or off. The operating time until automatic switch-on or switch-off can be set in 1-hour steps from 1 to 15 hours. The timer at the workplace is practical, so that the office is cooled down to a pleasant temperature as soon as work starts. The timer is also helpful when the air cooler unfolds its beneficial effect in the bedroom. The cool sea breeze from the air cooler lets you slip to sleep without sweating, after which the device switches itself off until the next morning to save energy.

Professional air cooling for industry, trade and events

The mobile air coolers PAE 80 and PAE 81 are recommended due to their high air and evaporation performance for commercial and industrial work areas such as:

Workshops of all kinds
Production areas/warehouses
Restaurants/cafes
Supermarkets/shops
Gas stations
Gyms
Nurseries
Hair salons
Exhibition stands
Powerful air cooling for all kinds of events

In the event and event sector, perfect air cooling is essential. When the humid air depresses the mood in midsummer, air coolers from the PAE series ensure a breath of fresh air and party mood in

Marquee tents
Exhibition halls
Function rooms
Event halls
Dining rooms
Bars
The mobile PAE air coolers score twice over with their pleasantly low energy consumption and uncomplicated handling. Quick refreshment and natural cooling - ideally suited, for example, for wedding celebrations, company parties, trade fairs, events, congresses, galas, product presentations, festivals, sporting events, supply and emergency tents

Advantages in professional use

Thanks to their low energy consumption and compact design, mobile PAE air coolers are a worthwhile alternative to conventional air conditioning systems. In practice, evaporative coolers are convincing:

Lower acquisition and operating costs
No assembly effort
High mobility and versatility in use
Almost no maintenance required
Uncomplicated and space-saving storage
Trotec air coolers of the PAE series - natural air cooling by professionals for professionals!

Naturally effective cooling principle

In contrast to air conditioning units, no chemical refrigerants are used in air coolers. The cooling process takes place in a completely natural way. In addition, neither an exhaust air hose is required, nor are complex installations required.

A mobile air cooler works on the principle of natural evaporative cooling. You know this from your own experience: When you blow on damp skin, you feel an immediate cooling, as the evaporation process draws heat away. It is the same with air coolers or air coolers: Inside the air cooler there is a filter mat soaked with water. The warm air is directed from the back of the device through the wet filter mat and cools down through evaporation. The now cooler air is then blown into the room by a fan.

Refreshment tip: The colder the water, the greater the cooling capacity. If you put the four cooling packs included in the scope of delivery into the water tank, the cooling performance can be increased even further. This additional freshness kick can also be achieved with ice cubes.

With the clearly visible level indicator, you can see at a glance whether there is still enough water in the large 60-liter tank, which is quick and easy to clean. When the water tank is empty, the water pump switches off automatically, while the fan continues to run to freshen up the air. The device signals by lighting up an LED and an acoustic signal that the water tank needs to be refilled. There are 3 different ways to fill it easily and conveniently.

Year-round operation - air cooler in summer, air humidifier in winter

With the PAE 81 you can enjoy a mobile feel-good climate all year round. Instead of parking the slim and space-saving aircooler in the storage room after the summer season, it is advisable to simply use it all year round. In spring and late summer you can provide a breath of fresh air with its 4 ventilation levels and enjoy the cooling effect of cold evaporation.

In autumn and winter, the device is also recommended as an effective air humidifier to create a more pleasant room climate. Because dry heating air can irritate the airways, dry out the skin and redden the eyes. At a humidity of 40 - 60%, the multiplication of viruses in the room air is also reduced. With the use of a humidifier, you ensure sufficient humidity and can thus increase your well-being in stuffy, overheated rooms and prevent colds and virus infections.

The Aircooler PAE 81 ensures natural cooling on the skin - while at the same time improving the indoor climate.

Benefits for practice:

• 4-in-1 air cooler: air cooling, air freshening, air purification, air humidification
• Natural air cooling through evaporative cooling with honeycomb technology
• Possibility of operation with 4 supplied ice packs or ice cubes to increase the cooling capacity
• High evaporation capacity of 2.8 liters per hour
• 60 liter water tank with level indicator
• 3 different filling options for the water tank - convenient and easy
• Automatic swing function of the air blades for even distribution in the room
• Air filter (against animal hair, lint and dust)
• Easy to clean water tank
• Convenient control by remote control
• 4 fan speeds
• 15-hour timer function for automatic on and off
• Easy to transport thanks to the practical recessed grip and transport rollers
• Space-saving storage
• Suitable for year-round operation! Air cooler in summer and humidifier in winter
• Fixed water connection for continuous commercial operation possible - no refilling necessary
• Increasing the humidity to 50% reduces the risk of virus transmission

Specialists have evaluated research results on the resistance of viruses (e.g. SARS-CoV, MERS-CoV or SARS-CoV-2 (Covid-19), influenza) and humidity. It turned out that the air humidity has serious effects on the infectivity of germ droplets. Dry room air with a relative humidity of less than 40% allows tiny droplets that are contaminated with flu or cold viruses to dry out. In this way, pathogens are preserved and remain infectious for a very long time. In the optimal range of 40 to 60% relative humidity, aerosols only shrink to such an extent that the salt concentration in the aerosol core increases, so that the germs and microorganisms contained therein are killed. The risk of catching flu and cold viruses is minimized here.

The specialists emphasize that we can reduce the risk of infection by increasing the humidity in buildings. Raising the humidity to around 50% through humidification leads to a reduction in the risk of transmission. In addition, the humidified air improves the body's defenses by cleaning the airways more efficiently and promoting the immune system. In modern buildings with a tight building envelope, central heating and ventilation systems, these limit values can often not be observed in everyday life without active air humidification. A device with an air humidification function can help here, however.

• Trotec_PAE_60_61-80_81_Manual.pdf
