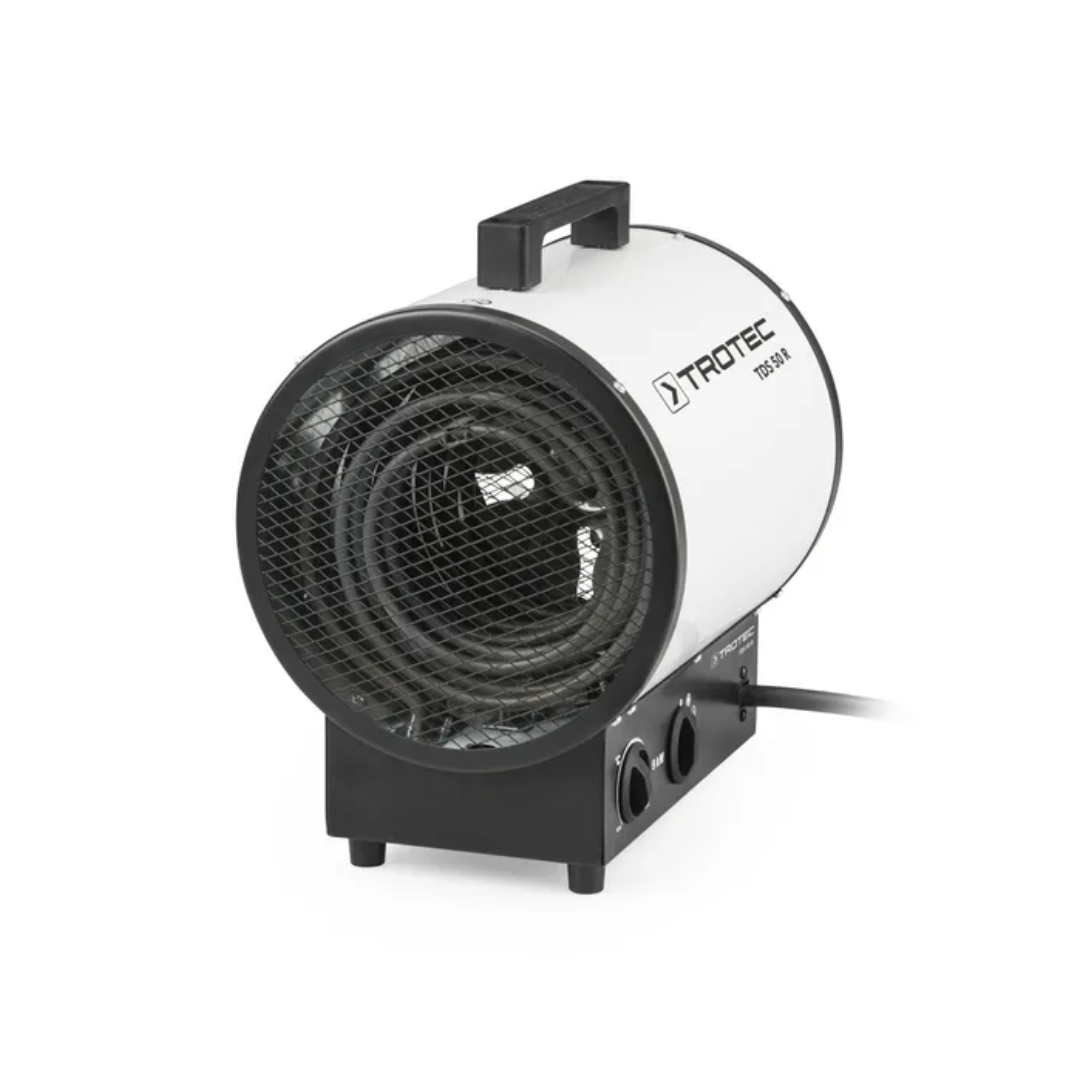

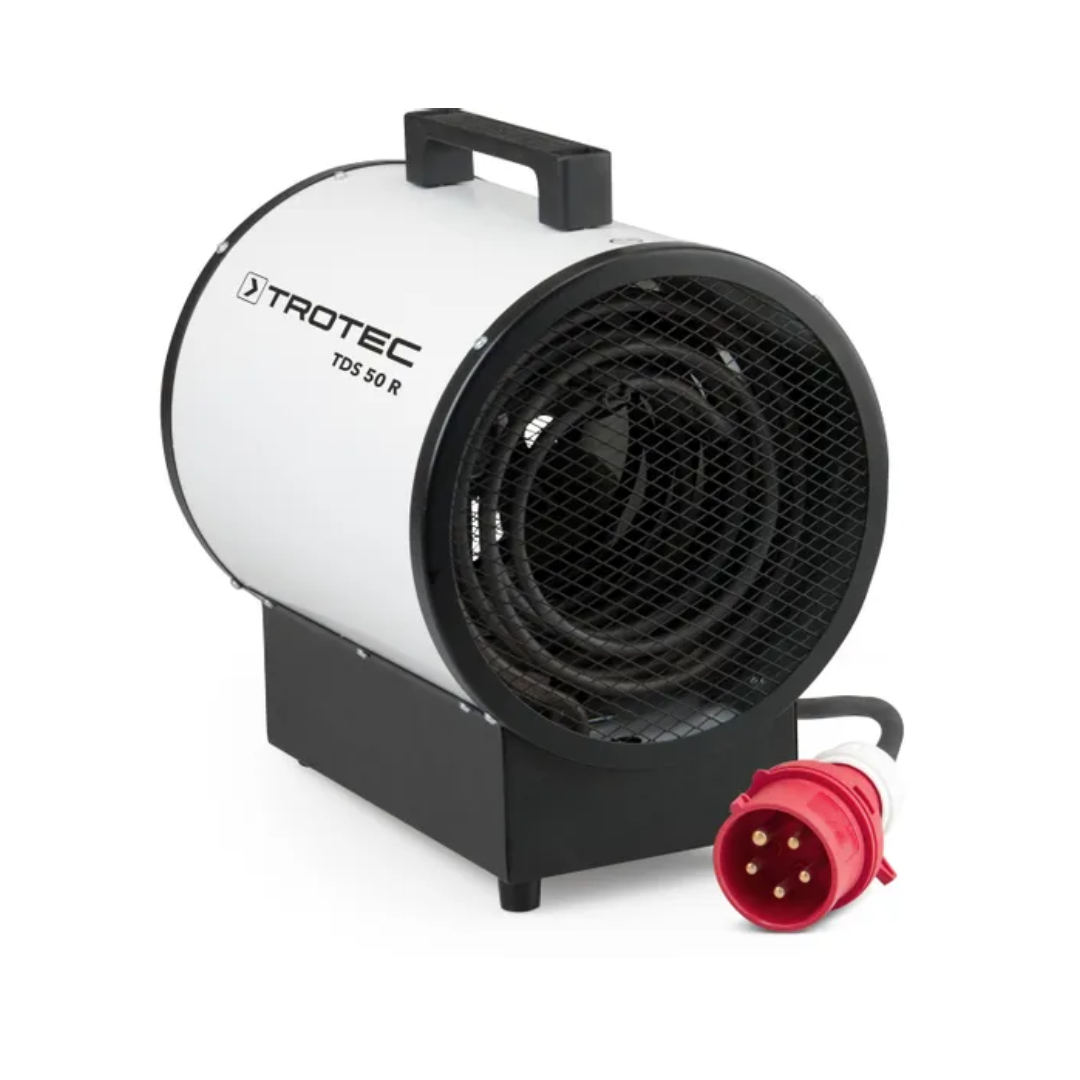

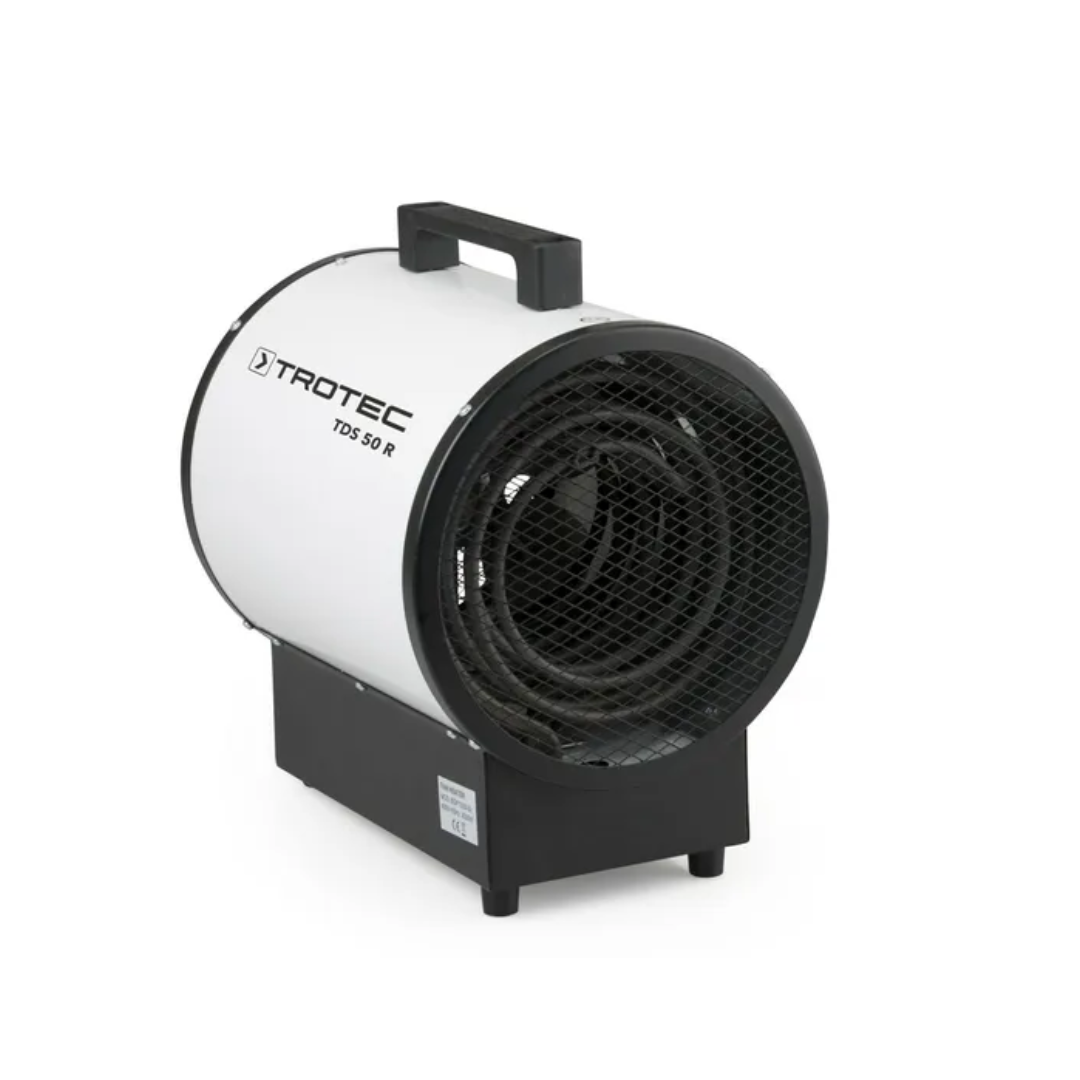

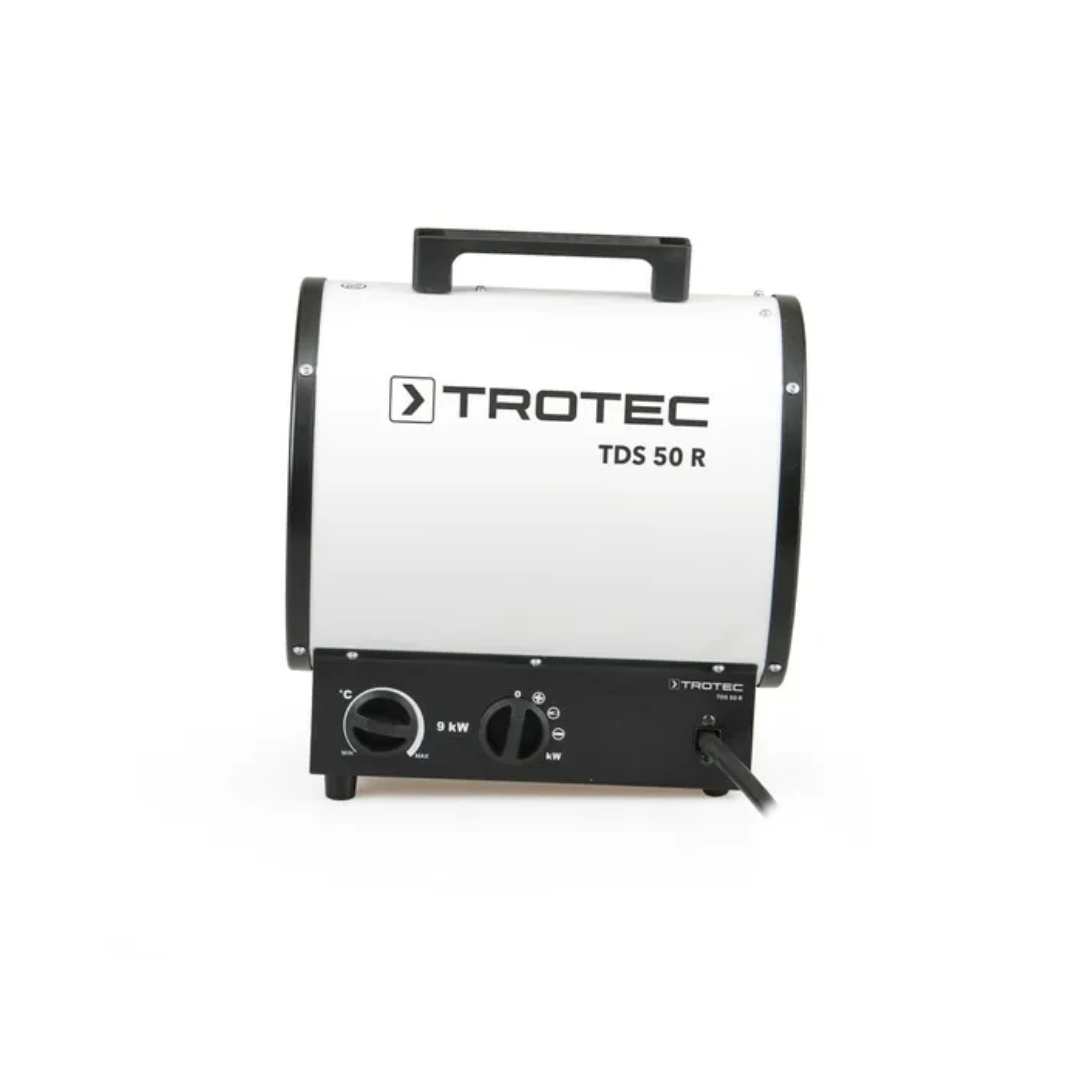

Trotec TDS 50 R Electric Fan Heater
Trotec TDS 50 R Electric Fan Heater is backordered and will ship as soon as it is back in stock.
FREE delivery on all items
Back in stock alert
Add your email below and we will email you when this product comes back into stock.
Payment & Security
We securely process your payment information without storing or accessing your debit or credit card details.
Delivery & Returns
Delivery & Returns
Orders placed before 12pm Mon - Fri are dispatched same day for a 'next working day' pallet delivery.
Orders placed before 12pm on Friday will be delivered on Monday, and after 12pm on a Tuesday (excluding Bank Holidays).
We take pride in offering a wide range of quality products, most of which are in stock and ready for same-day dispatch. Occasionally, certain items may need to be ordered directly from our supplier, which could extend the delivery time. We will notify you if this is the case.
Deliveries will be between 8.30am and 6pm and we request that you are available at those times, otherwise the order will be returned and we may have to issue a non-delivery fee.
Returns
Items must be returned within 30 days after receiving your order. Items must be returned in the same condition in which they were received, be unused, have any accessories included, and include all the original
packaging.
FAQs
FAQs
Read our comprehensive FAQ page which provides answers to queries around system types and installation.
Power Output : Room Size Table
Need help selecting the correct size climate control solution?
We understand that choosing the ideal heating or cooling products can be challenging, especially when compared to buying other consumer products. To make it easier to select the right products, use the table below to work out the correctly sized system or item for your requirements. (This works with standard room heights up to approximately 2.7 metres).
|
Power Output |
Room Size (up to) (approx) |
||
|
kW |
Btu |
Square metres (m²) |
Square foot (ft²) |
|
1.5 |
5000 |
12 |
120 |
|
2.0 |
7000 |
16 |
160 |
|
2.5 |
9000 |
20 |
200 |
|
3.5 |
12,000 |
30 |
300 |
|
4.5 |
15,000 |
40 |
400 |
|
5.0 |
18,000 |
45 |
450 |
|
6.2 |
21,000 |
50 |
500 |
|
7.0 |
24,000 |
55 |
545 |
|
8.0 |
27,000 |
65 |
645 |
|
10.0 |
34,000 |
80 |
800 |
|
12.5 |
43,000 |
100 |
990 |
|
14.0 |
48,000 |
110 |
1090 |
Description
Description
Description
Product Description
The TDS R series electric heaters provide immediate, condensation-free warmth on-site, without the need for long air circulation. These efficient heating units are ideal for use in unheated indoor spaces like workshops, garages, or other enclosed areas. Unlike direct-fired gas or oil heaters, they don’t consume oxygen or produce combustion gases, making them a safe choice for temperature management.
Equipped with an integrated thermostat, the TDS 50 R allows continuous adjustment of the warm air output to achieve the desired temperature. When needed, the heating elements automatically activate in addition to the constant fan for optimal heating. Note: This heater requires a 3-phase plug for operation.
Practical Benefits
- Multi-stage temperature control with up to three heating levels
- Integrated thermostat for consistent, cozy warmth
- Overheat and tilt protection for added safety
- Fan motor with thermal protection
- Condensation-free operation with no oxygen consumption, suitable for enclosed spaces
- Lightweight, portable, and user-friendly design
Ideal Applications
- Automotive workshops
- Construction sites
- Assembly operations
- Hospitality and catering
- Storage rooms and workshops
- Greenhouses
- And more...
The TDS R series offers a reliable and effective heating solution, delivering safe and efficient warmth for a variety of indoor settings.
Specification
Specification
Specification
- Heating Capacity (kW): 4.5 - 9.0
- Air Flow Rate (m³/h): 844
- Temp Increase (°C): 85
- Operating Range (°C): -15 - 25
- Fan: Axial
- Nominal Consumption (A): 13
- Recommended Fusing (A): 16
- Power Input (kW): 9
- Cable Length (m): 1.2
- Sound Power (dB): 56

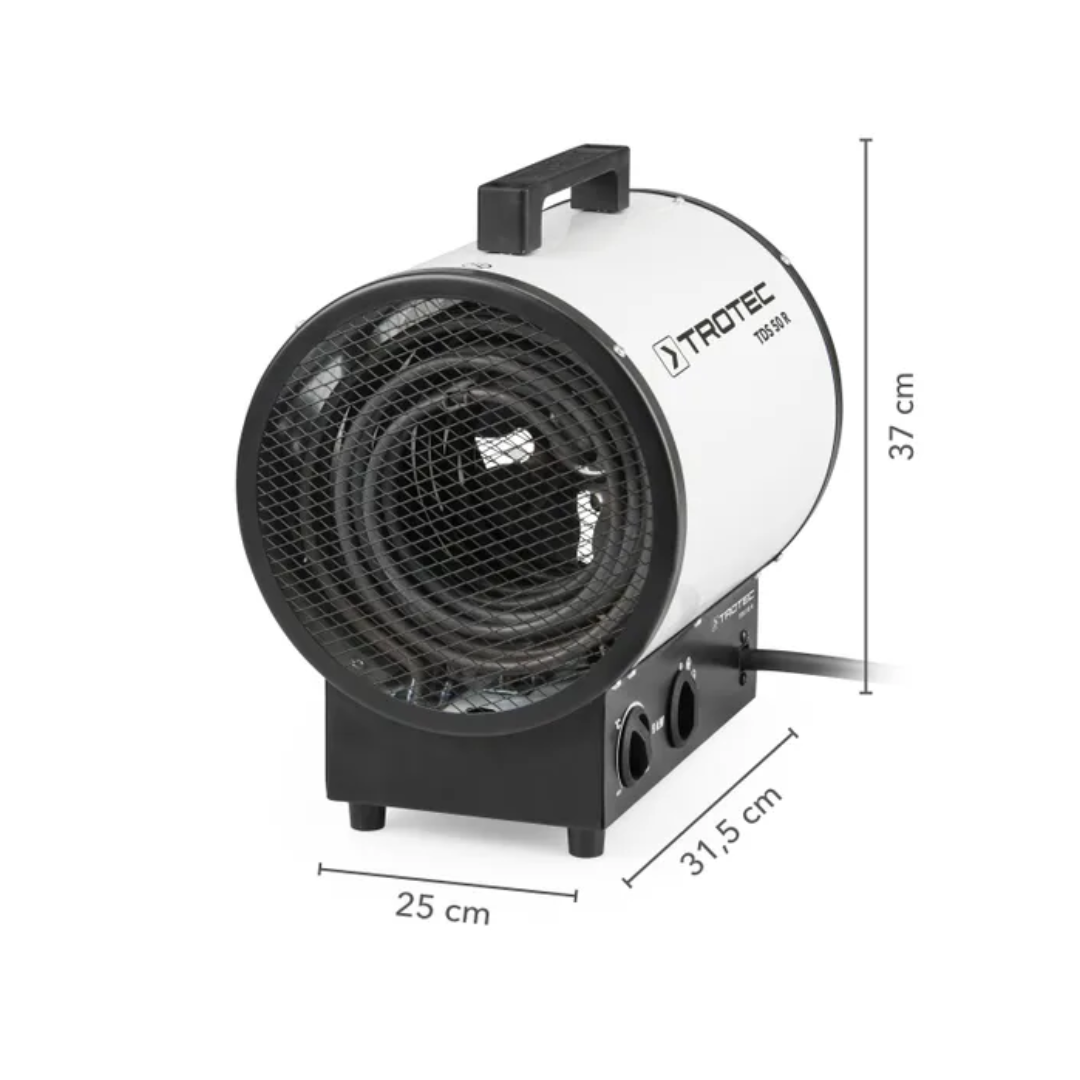

- Dimensions (mm): 350 x 250 x 358
- Weight (kg): 6.5
- :
