Broughton MCe6.7 6.7kW Industrial Cooling Unit
Broughton MCe6.7 6.7kW Industrial Cooling Unit is backordered and will ship as soon as it is back in stock.
FREE delivery on all items
Payment & Security
We securely process your payment information without storing or accessing your debit or credit card details.
Delivery & Returns
Delivery & Returns
Timescales are dependent on the product, but for the majority of items we send on a next working day delivery. If we can't get it sent on a next working day delivery, then standard delivery is up to 5 working days. Other than small items and accessories we will contact you to confirm the delivery date to ensure you will be available to receive delivery.
Orders can be sent the same day if placed before 12pm (Mon-Fri) and we have confirmed that the next-working day is suitable with you via phone or email.
For urgent next-working day deliveries please place your order online and contact us to ensure we can verify the delivery day swiftly and organise shipping.
Deliveries will be between 8.30am and 6pm and we request that you are available at those times, otherwise the order will be returned and we may have to issue a non-delivery fee.
Lightweight/low value items are normally despatched on a next working day courier service, and we can offer a 2-hour delivery slot text message on the day.
Please contact us if you have any special delivery requirements eg delivery via tail lift vehicles, weekend deliveries, timed deliveries, unpaved or narrow pathways etc.
Returns
Items must be returned within 14 days after receiving your order. Items must be returned in the same condition in which they were received, be unused, have any accessories included, and include all the original
packaging.
FAQs
FAQs
Read our comprehensive FAQ page which provides answers to queries around system types and installation.
Power Output : Room Size Table
Need help selecting the correct size climate control solution?
We understand that choosing the ideal heating or cooling products can be challenging, especially when compared to buying other consumer products. To make it easier to select the right products, use the table below to work out the correctly sized system or item for your requirements. (This works with standard room heights up to approximately 2.7 metres).
|
Power Output |
Room Size (up to) (approx) |
||
|
kW |
Btu |
Square metres (m²) |
Square foot (ft²) |
|
1.5 |
5000 |
12 |
120 |
|
2.0 |
7000 |
16 |
160 |
|
2.5 |
9000 |
20 |
200 |
|
3.5 |
12,000 |
30 |
300 |
|
4.5 |
15,000 |
40 |
400 |
|
5.0 |
18,000 |
45 |
450 |
|
6.2 |
21,000 |
50 |
500 |
|
7.0 |
24,000 |
55 |
545 |
|
8.0 |
27,000 |
65 |
645 |
|
10.0 |
34,000 |
80 |
800 |
|
12.5 |
43,000 |
100 |
990 |
|
14.0 |
48,000 |
110 |
1090 |
CoolEasy says:
Industrial Split Portable Air Conditioning
Description
Description
Description

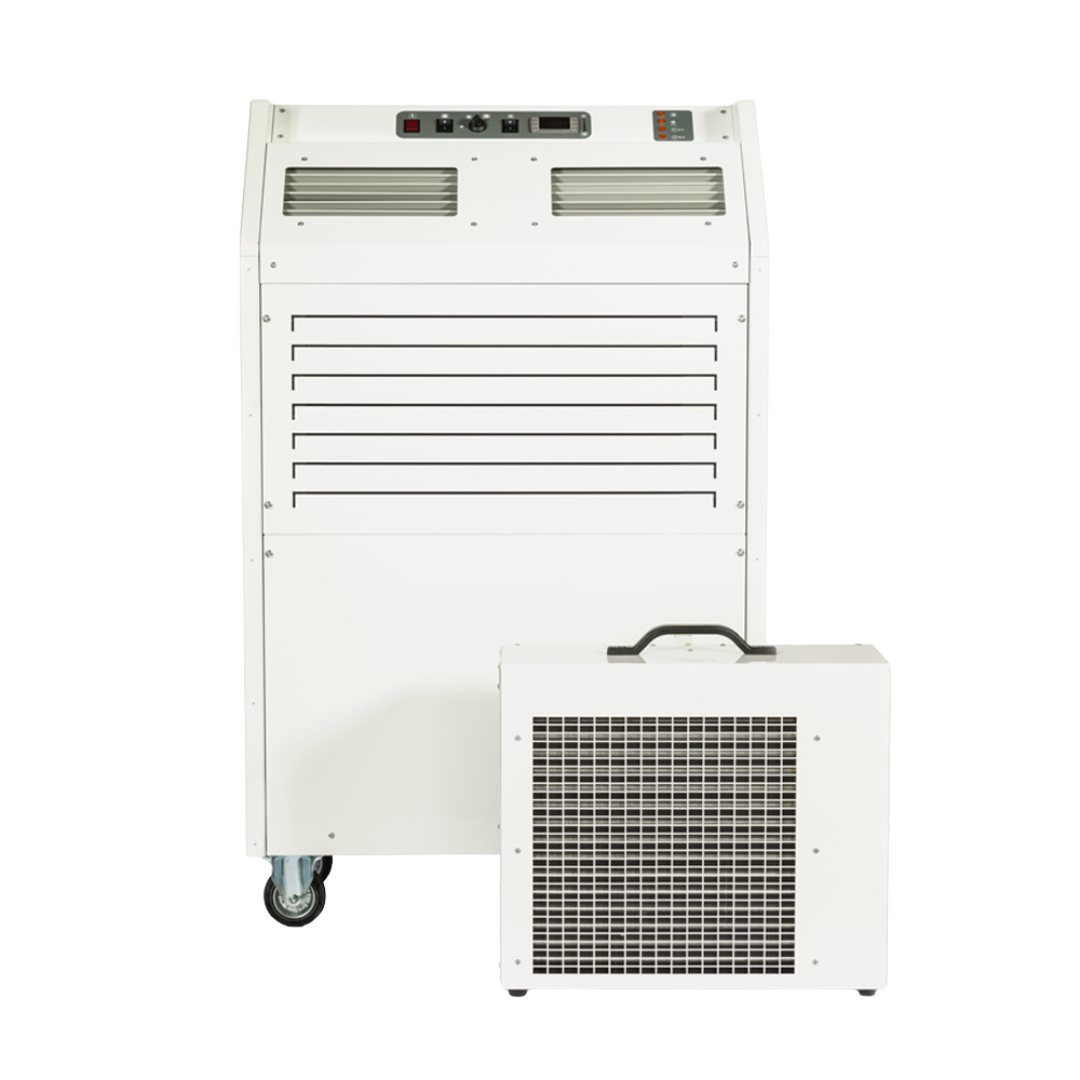

As a water cooled split the MCe6.7 is the most efficient and effective form of portable air
conditioning available, as it removes the de rating effect of the condenser by using a plate heat exchanger instead. This also helps keep the sound down too as it moves one of the fans outside the area needing cooling.
This low GWP version of our industry standard MCWS250 sees it upgraded to meet modern
environmental standards while still promising up to 6.7kW of cooling without the need for

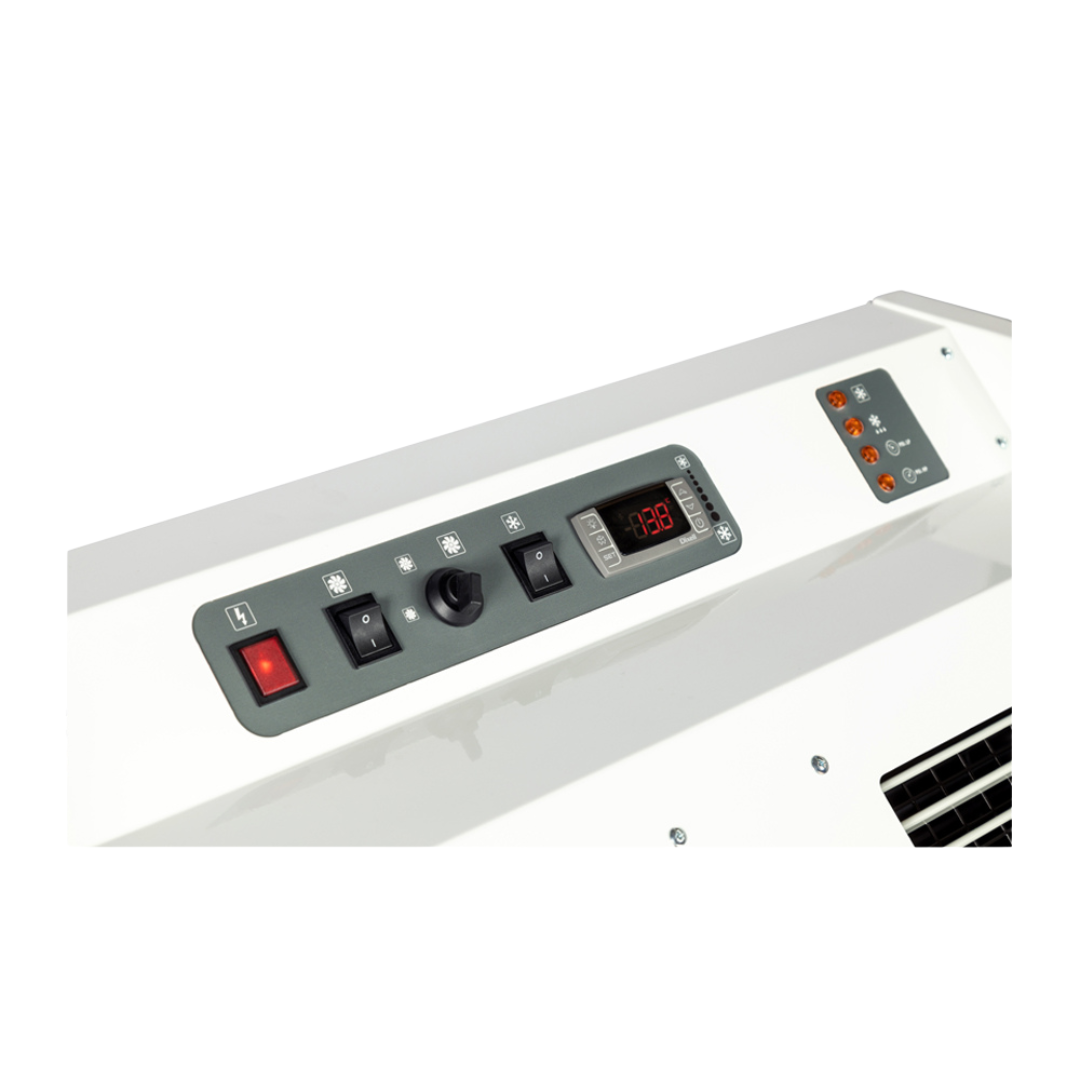

ducting. This makes the MCe6.7 ideal for use in data centres, especially as the main unit and outdoor section can be up to 35M apart. With digital thermostatic control, twin louvre directional and variable speed control the MCe6.7 can have it’s air delivery tailored to suit a range of needs, while a status panel lets you know what the units is doing at a glance and low temperature operation is also included as standard.
Please enquire regarding availability, as the machines are often made to order by the manufacturer
Specification
Specification
Specification
- Nominal duty: 6.7kW
- Nominal Running Current: 12.4A
- Digital thermostatic: control
- Umbilical Length: 35m
- Lockable: castors
- High efficiency: EC fan technology
- Main Unit Airflow (max): 1,100m³
- Heat Exchanger Airflow (max): 3,100m³
- Supply: 13A 230v
- Typical Cooled Area: Server rooms and Data Centres
- Weight: 110kg
- Dimensions: 1308 x 805 x 382mm
- Operating range: 15°c-35°c
- IP Rating: IP2X/IP24
- Noise: 64dB
- Max Water Temp: 55.5°c
