Flowatch Silence - Condensate Pump in Trunking
Flowatch Silence - Condensate Pump in Trunking is backordered and will ship as soon as it is back in stock.
FREE delivery on all items
Payment & Security
We securely process your payment information without storing or accessing your debit or credit card details.
Delivery & Returns
Delivery & Returns
Orders placed before 12pm Mon - Fri are dispatched same day for a 'next working day' pallet delivery.
Orders placed before 12pm on Friday will be delivered on Monday, and after 12pm on a Tuesday (excluding Bank Holidays).
We take pride in offering a wide range of quality products, most of which are in stock and ready for same-day dispatch. Occasionally, certain items may need to be ordered directly from our supplier, which could extend the delivery time. We will notify you if this is the case.
Deliveries will be between 8.30am and 6pm and we request that you are available at those times, otherwise the order will be returned and we may have to issue a non-delivery fee.
Returns
Items must be returned within 14 days after receiving your order. Items must be returned in the same condition in which they were received, be unused, have any accessories included, and include all the original
packaging.
FAQs
FAQs
Read our comprehensive FAQ page which provides answers to queries around system types and installation.
Power Output : Room Size Table
Need help selecting the correct size climate control solution?
We understand that choosing the ideal heating or cooling products can be challenging, especially when compared to buying other consumer products. To make it easier to select the right products, use the table below to work out the correctly sized system or item for your requirements. (This works with standard room heights up to approximately 2.7 metres).
Power Output |
Room Size (up to) (approx) |
||
kW |
Btu |
Square metres (m²) |
Square foot (ft²) |
1.5 |
5000 |
12 |
120 |
2.0 |
7000 |
16 |
160 |
2.5 |
9000 |
20 |
200 |
3.5 |
12,000 |
30 |
300 |
4.5 |
15,000 |
40 |
400 |
5.0 |
18,000 |
45 |
450 |
6.2 |
21,000 |
50 |
500 |
7.0 |
24,000 |
55 |
545 |
8.0 |
27,000 |
65 |
645 |
10.0 |
34,000 |
80 |
800 |
12.5 |
43,000 |
100 |
990 |
14.0 |
48,000 |
110 |
1090 |
Description
Description

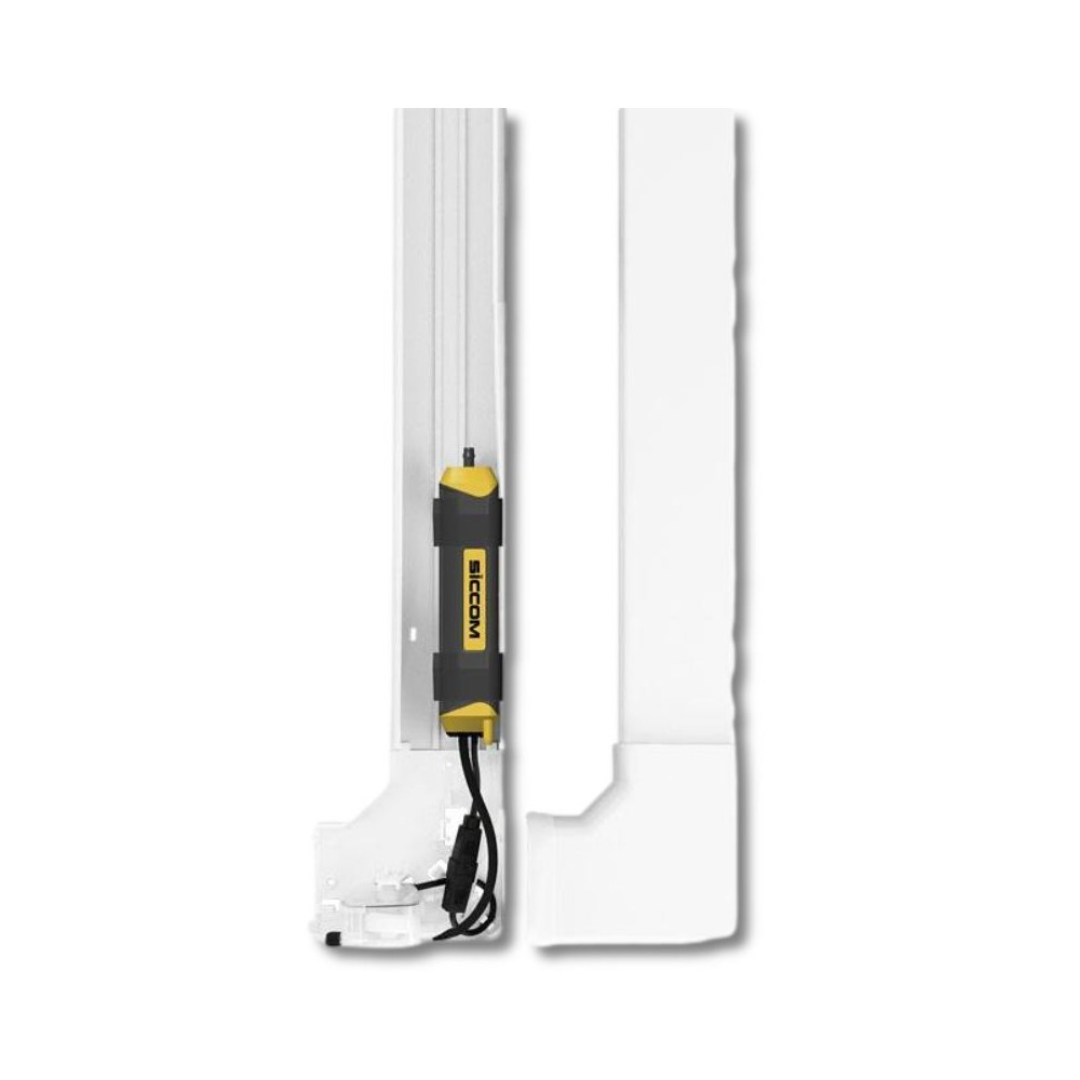

The Flowatch Silence DT20 Trunking Pump is a specialized condensate removal solution designed for air conditioning systems up to 20 kW (68,000 BTU). This version comes integrated within a discreet trunking system, making it ideal for installations requiring a clean and streamlined appearance, particularly in residential and commercial environments.
Key features include:
- Quiet Operation: The pump operates at an impressively low noise level of 17 dB(A), ensuring minimal disturbance in noise-sensitive spaces.
- Efficient Performance: It offers a maximum flow rate of 20 liters per hour with a discharge head of up to 7 meters, providing reliable condensate removal for a wide range of applications.
- Integrated Safety Features: The built-in three-stage float switch (On/Off/Alarm) can automatically stop the air conditioning unit if the condensate level exceeds a safe threshold, preventing potential overflow.
- Compact Design with Trunking: The pump is housed within a sleek trunking system, enabling easy installation while maintaining a neat and professional aesthetic. This makes it particularly suited for visible installations where aesthetics matter.
- Durability and Protection: With an IP64 protection rating, the pump is resistant to dust and water ingress. Additionally, its dry-run-resistant design ensures long-term reliability.
- Continuous Operation: The pump is capable of operating continuously, ensuring uninterrupted performance when needed.
The Flowatch Silence DT20 Trunking Pump is the perfect combination of efficiency, quietness, and seamless integration, making it an ideal choice for environments where both performance and appearance are paramount.
1 product included only, images are for reference only
Specification
Specification
- Flowrate max: 20 l/h
- Discharge head: 10 m
- Electrical power: 3W
- Voltage: 220-240V 50/60Hz
- Alarm: NC
- Noise level: N/A
- Protection Rating: IP64
- Thermal protection: Yes
- Operating cycle: 100%
- Power cable: 1.6 m
- Trunking Dimensions (mm): 80 x 60
