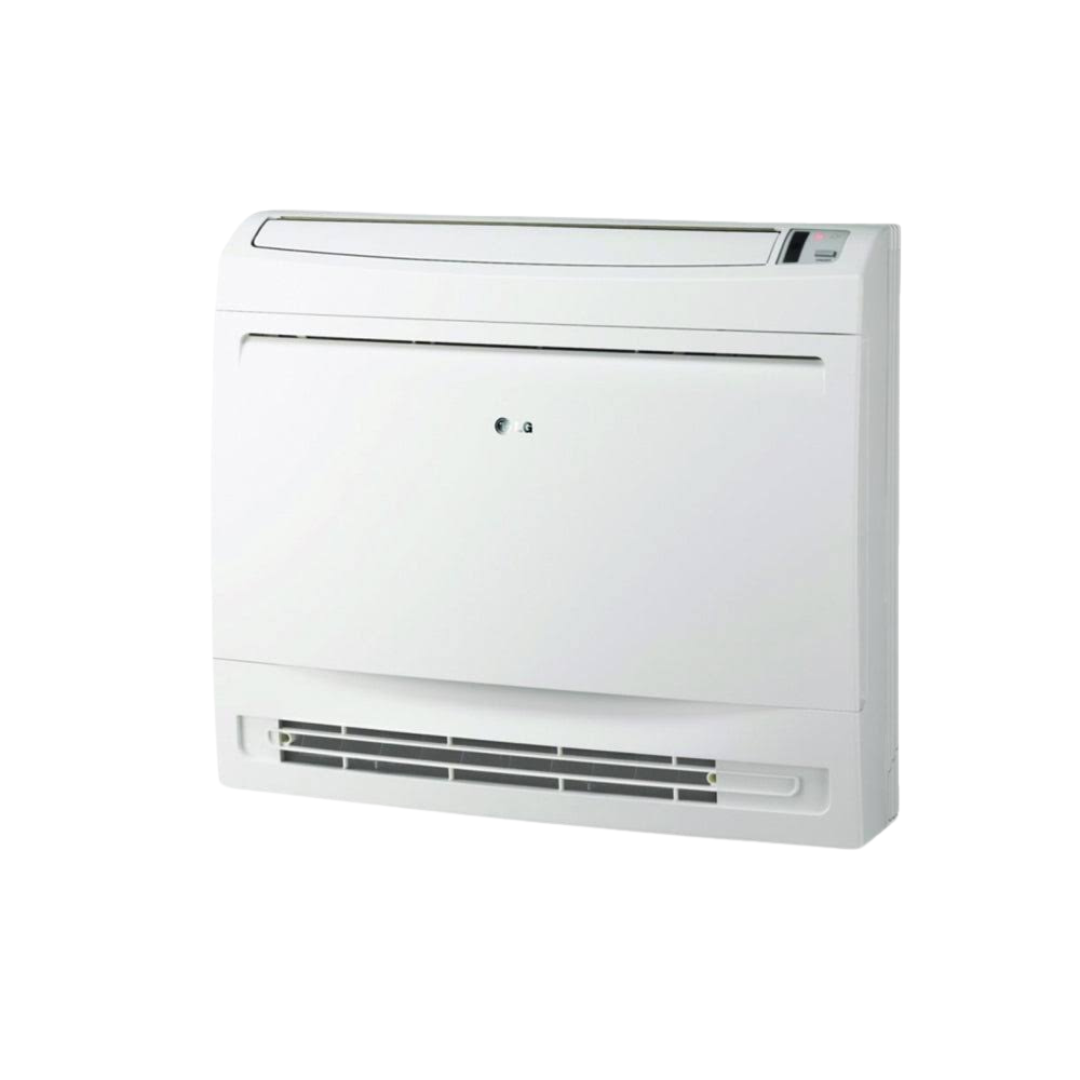

LG Multi Console Indoor Unit

The LG UQ Console Floor Mounted Indoor Units are a new design with a flat/low profile flat appearance, and is very easy to keep clean. The unit includes the new user friendly controller and filtration system which destroys fungi, bacteria and viruses. This combined with the main Photocatalytic Washable Deodorizing Filter, provides healthy clean air for the occupants.

LG has used its innovative technology their new high and low air movement fan arrangement for optimum heating and cooling. The result is a quiet, high performance cooling and heating system, with advanced electronic controls for maximum comfort, controllable and energy efficient.

CQ Console Series

The slim indoor unit has a reduced depth of 210mm. The new  multiple stage heat exchanger is folded to form a surround to the upper section of the fan enclosure. This ensures low air velocity, and reduced sound levels, whilst delivering high performance and efficiency. The unit produces an amazing 4.19 x input or 4200 watts for 1000 watt input in heat mode.

Auto Air Outlet selection

In heating mode: Both lower and upper outlets operate with Auto fan speed mode, the lower outlet will be kept for twenty minutes after the start or until room temperature is close to reaching the setting point. And then the air outlet will change to both outlets. That state will be maintained until the switch is turned off. Automatic adjustment of lower air outlet direction prevents stirring up of warm air and keeps optimum comfort at floor level.

Product Key Feature's of the LG UQ range

• High CoP, up to 4.19
• New advanced technology control
• Reduced height slim construction
• Only 210mm deep
• Pipe runs up to 15 metres
• Low noise – from 26dBA
• Back-up switch for loss of controller
• Fault diagnosis
• Auto re-start after power interruption
• Auto air direction with high and low air outlets for cooling/heating operations

Will work with the LG Multi Split Outdoor Unit range

• LG_CQ-console.pdf
