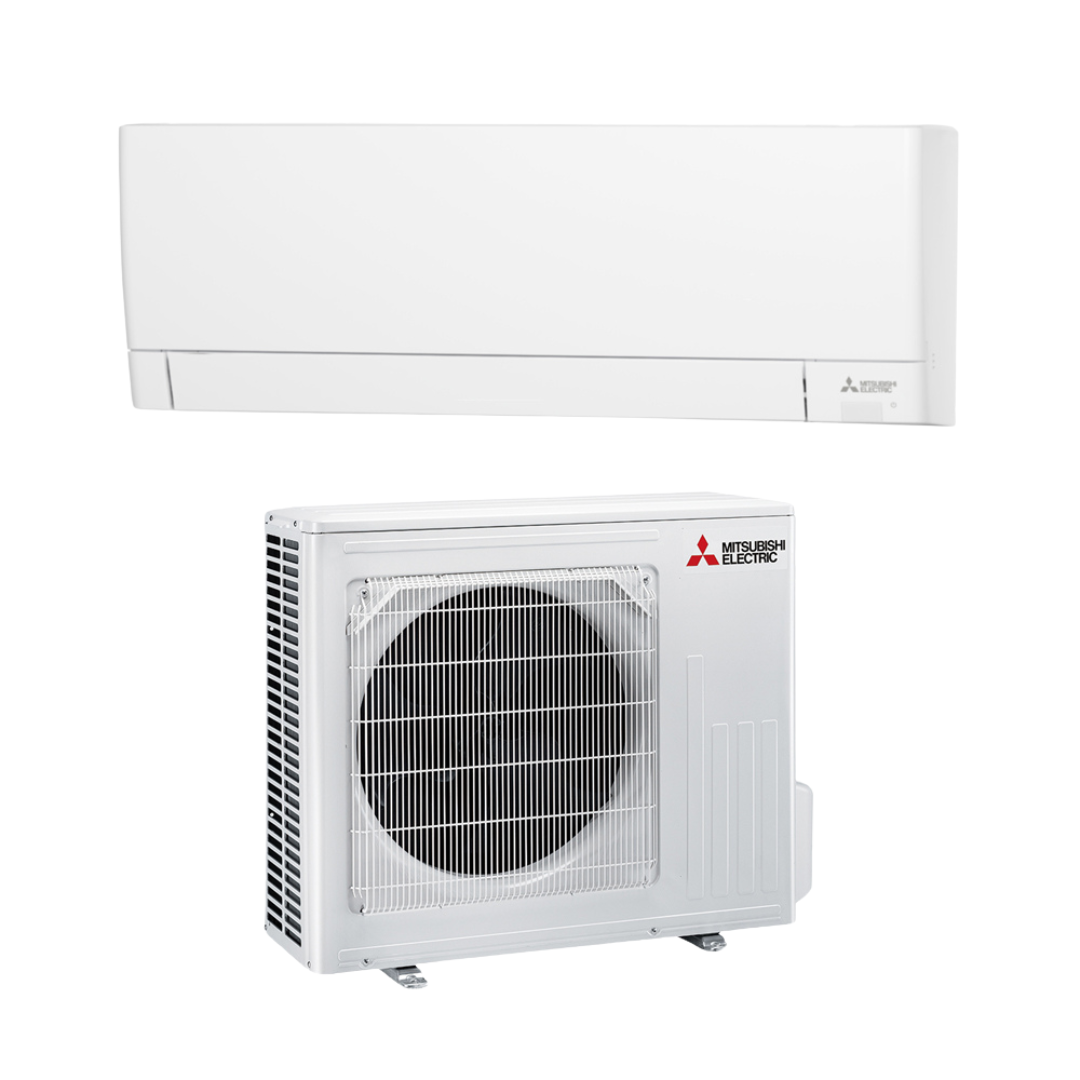

Mitsubishi Electric Elegance 5.0kW Wall Mounted Air Conditioning System
Mitsubishi Electric Elegance 5.0kW Wall Mounted Air Conditioning System is backordered and will ship as soon as it is back in stock.
FREE delivery on all items
This Item will be delivered on a pallet, once the order is ready to be dispatched you will be contacted to confirm a delivery date
Payment & Security
We securely process your payment information without storing or accessing your debit or credit card details.
Delivery & Returns
Delivery & Returns
We take pride in offering a wide range of quality products, most of which are in stock and ready for same-day dispatch. Occasionally, certain items may need to be ordered directly from our supplier, which could extend the delivery time.
We aim to dispatch orders on a next-working day pallet delivery, once we have received the FGAS details of your installation engineer, and then verified those details with the engineer. The required information is sent once we have received your order online. We will then confirm with you a convenient delivery date to ensure you can take delivery of the item.
This can be done on the same day if orders are placed before 12pm (Mon-Fri) and we have confirmation of all the above details.
Deliveries will be between 8.30am and 6pm and we request that you are available at those times, otherwise the order will be returned and we may have to issue a non-delivery fee.
Returns
Items must be returned within 14 days after receiving your order. Items must be returned in the same condition in which they were received, be unused, have any accessories included, and include all the original packaging.
FAQs
FAQs
Read our comprehensive FAQ page which provides answers to queries around system types and installation.
Power Output : Room Size Table
Need help selecting the correct size climate control solution?
We understand that choosing the ideal heating or cooling products can be challenging, especially when compared to buying other consumer products. To make it easier to select the right products, use the table below to work out the correctly sized system or item for your requirements. (This works with standard room heights up to approximately 2.7 metres).
|
Power Output |
Room Size (up to) (approx) |
||
|
kW |
Btu |
Square metres (m²) |
Square foot (ft²) |
|
1.5 |
5000 |
12 |
120 |
|
2.0 |
7000 |
16 |
160 |
|
2.5 |
9000 |
20 |
200 |
|
3.5 |
12,000 |
30 |
300 |
|
4.5 |
15,000 |
40 |
400 |
|
5.0 |
18,000 |
45 |
450 |
|
6.2 |
21,000 |
50 |
500 |
|
7.0 |
24,000 |
55 |
545 |
|
8.0 |
27,000 |
65 |
645 |
|
10.0 |
34,000 |
80 |
800 |
|
12.5 |
43,000 |
100 |
990 |
|
14.0 |
48,000 |
110 |
1090 |
Description
Description
Description
The MSZ-AY & MSZ-AP wall mounted systems deliver excellent flexibility and energy efficiency for air conditioning projects.
The range benefits from a stylish design, air purifying properties and a range of capacities from 2.0kW to 7.1kW in the single split collection. With connection capability to single as well as multi-split systems, the Elegance series is a great fit for residential and light commercial applications.
Key Features & Benefits:
- Elegant and sleek design to complement multiple application types
- High seasonal efficiencies, offering energy savings and low running costs
- Low noise levels, including Night Mode setting, for minimal disturbance to occupants
- In-room air purification through advanced V-Blocking filter, neutralising bacteria, viruses, allergens, dust and mould
- Luxury Matt finish ensures easy cleaning and consistent premium appearance (MSZ-AY only)
- Self-cleaning mode prevents mould and odours, allowing cleaner air to be delivered to the space (MSZ-AY only)
- Dual-Barrier coating on the heat exchanger, fan and air duct prevents dust and grease accumulation within the unit, ensuring long-term efficient operation (MSZ-AY only)
- Built-in Wi-Fi interface enables system control and monitoring via the Mitsubishi Electric MELCloud app; plus voice control - compatible with Amazon Alexa and Google Assistant-enabled devices
**UK F-GAS laws state you must provide us with details of the F-GAS registered engineer you will be using BEFORE we can dispatch any split systems**
These systems are not held in stock and are ordered directly from the manufacturer as required. Please contact us for availability before ordering to ensure delivery is possible when it shall be required.
Images are for reference only
Specification
Specification
Specification

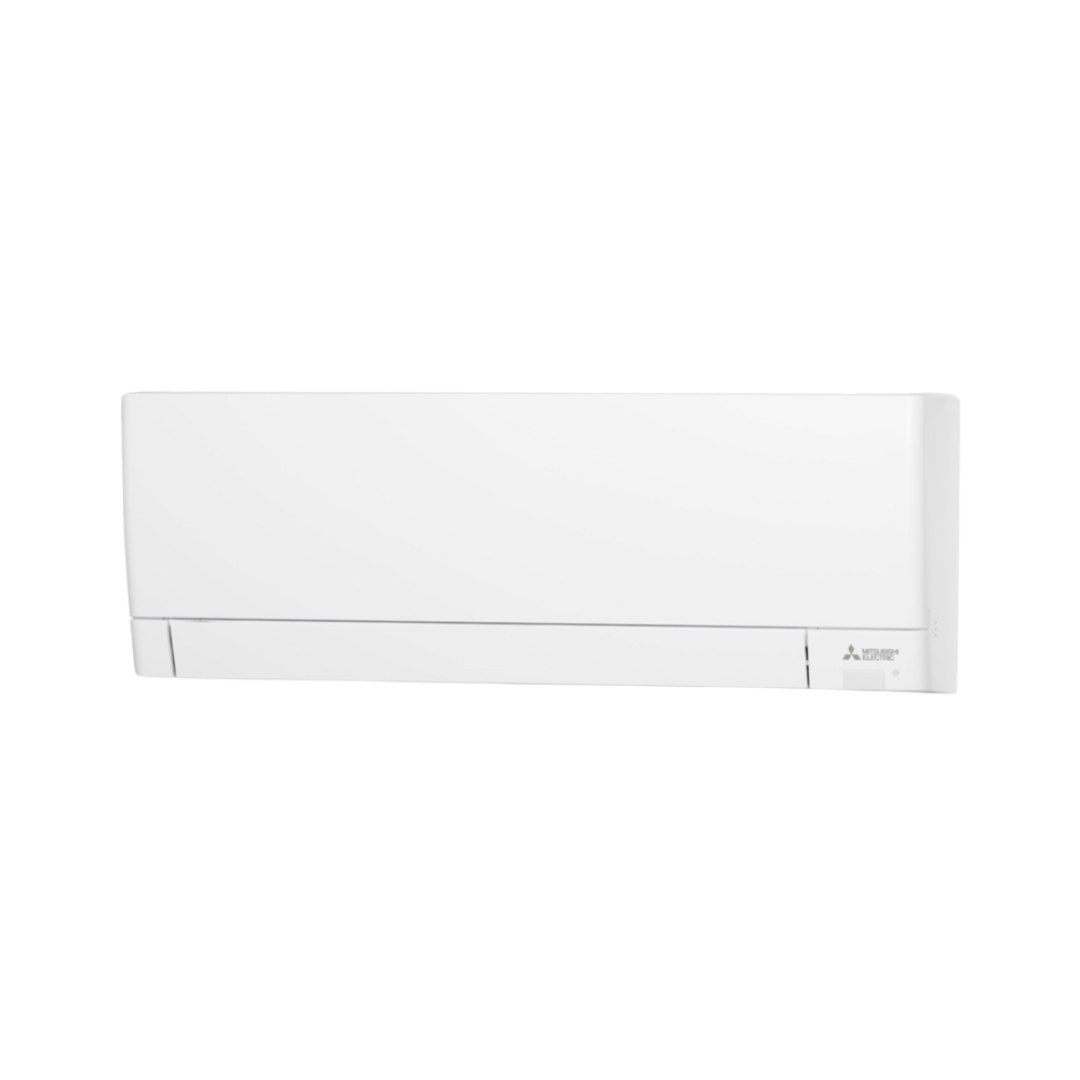

- Indoor Unit:
- Heating Capacity (kW): 1.4-5.4
- Cooling Capacity (kW): 1.4-7.3
- COP (W): 3.74
- EER (W): 3.24
- SCOP (W): 4.70
- SEER (W): 7.50
- Heating Max Airflow (I/s): 215
- Cooling Max Airflow (I/s): 195
- Sound Power (dBA): 58
- Dimensions (mm): 789 x 245 x 299
- Weight (kg): 10.5
- :

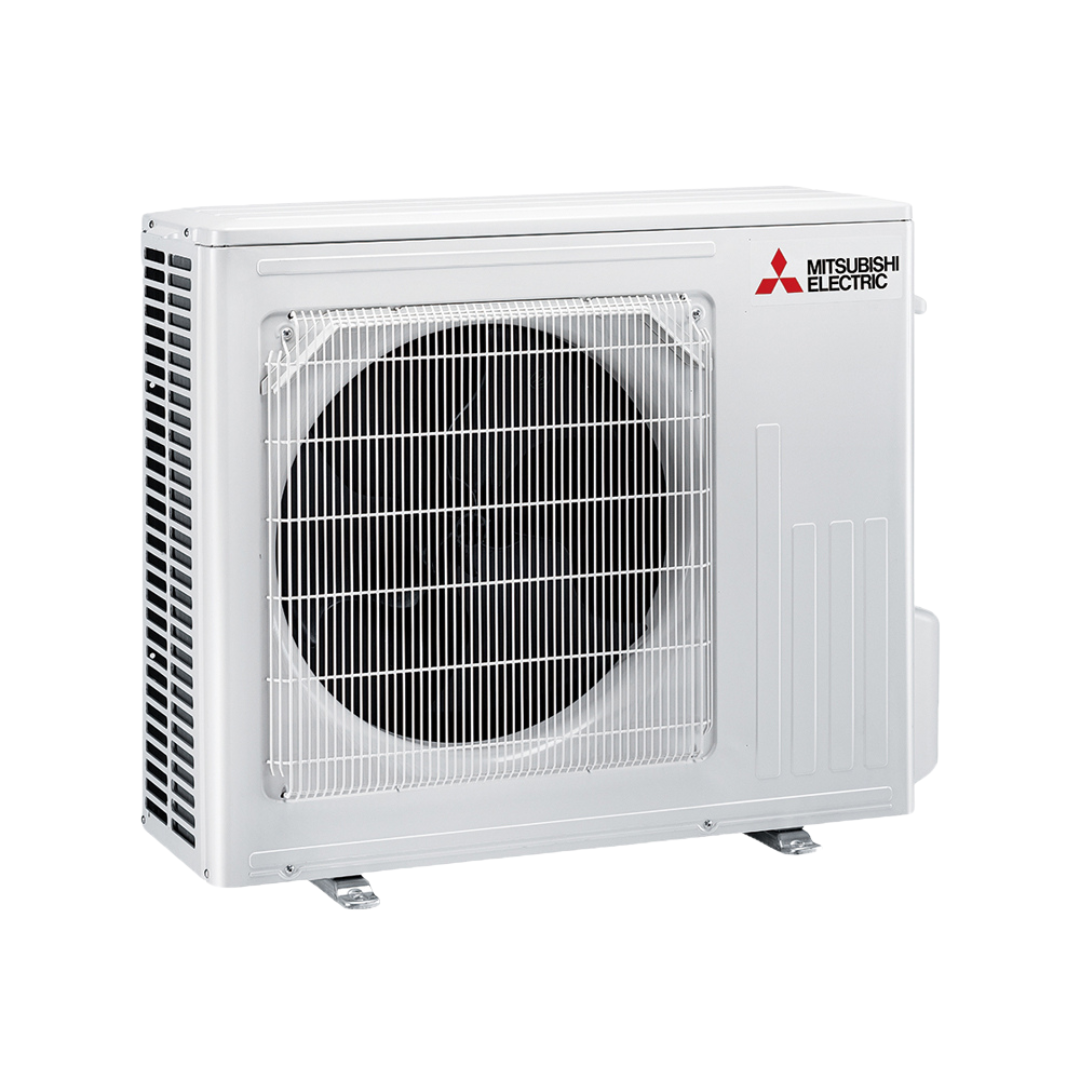

- Outdoor Unit:
- Sound Power (dBA): 64
- Dimensions (mm): 800 x 285 x 714
- Weight (kg): 40.5
- Power Supply: 1 / 220-240 / 50
- System Power Input (Heating/Cooling) (kW): 1.47/1.54
- Starting Current (A): 6.9
- Running Current (A): 13.8
- Max Pipe Length (m): 20
- Max Pipe Height (m): 12
- :
