Mitsubishi Electric  |  SKU: ME-EF35-B

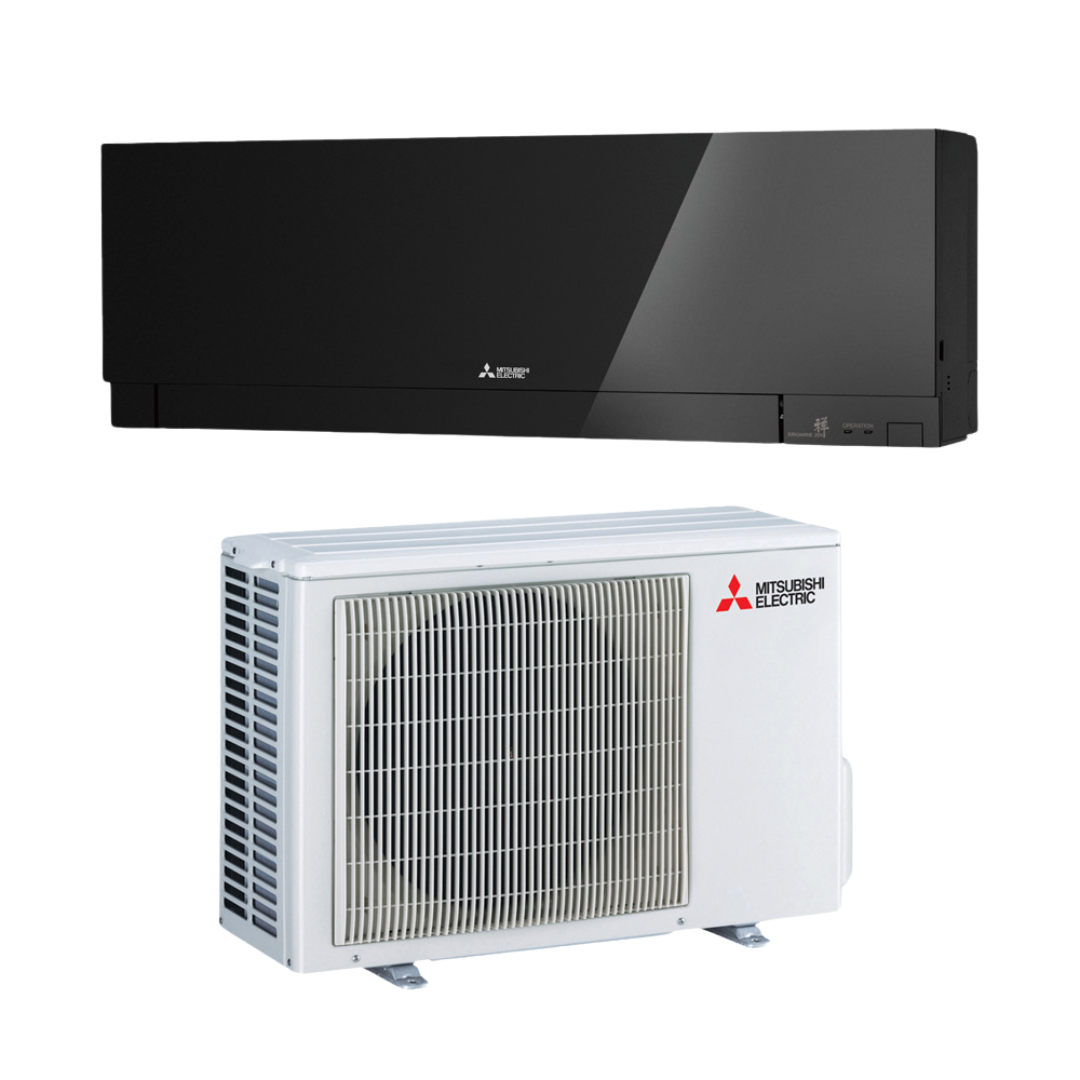

Mitsubishi Electric EF 3.5kW Air Conditioning System

High Street: £1,589.99 High Street: £1,324.99
Our Price:
£1,124.99 Inc. VAT £937.49 Exc. VAT

Combining an impressively low power consumption with a quiet, yet powerful performance, the Mitsubishi Electric EF range (also known as the Mitsubishi Zen) have a distinctively styled front panel that not only looks appealing, but also helps to make cleaning of the unit easier. Designed to complement modern interior décor and suitable for a wide range of applications, Zen units blend in naturally wherever they are installed.


Color: Black

FREE delivery on all items


Payment & Security

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

We securely process your payment information without storing or accessing your debit or credit card details.

Delivery & Returns

Timescales are dependent on the product, but for the majority of items we send on a next working day delivery. If we can't get it sent on a next working day delivery, then standard delivery is up to 5 working days. Other than small items and accessories we will contact you to confirm the delivery date to ensure you will be available to receive delivery.

For FGAS systems and Multi-Split systems we will need details of the installation engineer from you, and confirm those with the engineer before we can proceed with the item delivery.

Orders can be sent the same day if placed before 12pm (Mon-Fri) and we have confirmed that the next-working day is suitable with you via phone or email.

For urgent next-working day deliveries please place your order online and contact us to ensure we can verify the delivery day swiftly and organise shipping.

Deliveries will be between 8.30am and 6pm and we request that you are available at those times, otherwise the order will be returned and we may have to issue a non-delivery fee.

Lightweight/low value items are normally despatched on a next working day courier service, and we can offer a 2-hour delivery slot text message on the day.

Please contact us if you have any special delivery requirements eg delivery via tail lift vehicles, weekend deliveries, timed deliveries, unpaved or narrow pathways etc.

FAQs

Read our comprehensive FAQ page which provides answers to queries around system types and installation.

Go to FAQs

CoolEasy says:

The ZEN to keep you felling zen

Description

Combining an impressively low power consumption with a quiet, yet powerful performance, the Mitsubishi Electric EF range (also known as the Mitsubishi Zen) have a distinctively styled front panel that not only looks appealing, but also helps to make cleaning of the unit easier. Designed to complement modern interior décor and suitable for a wide range of applications, Zen units blend in naturally wherever they are installed.

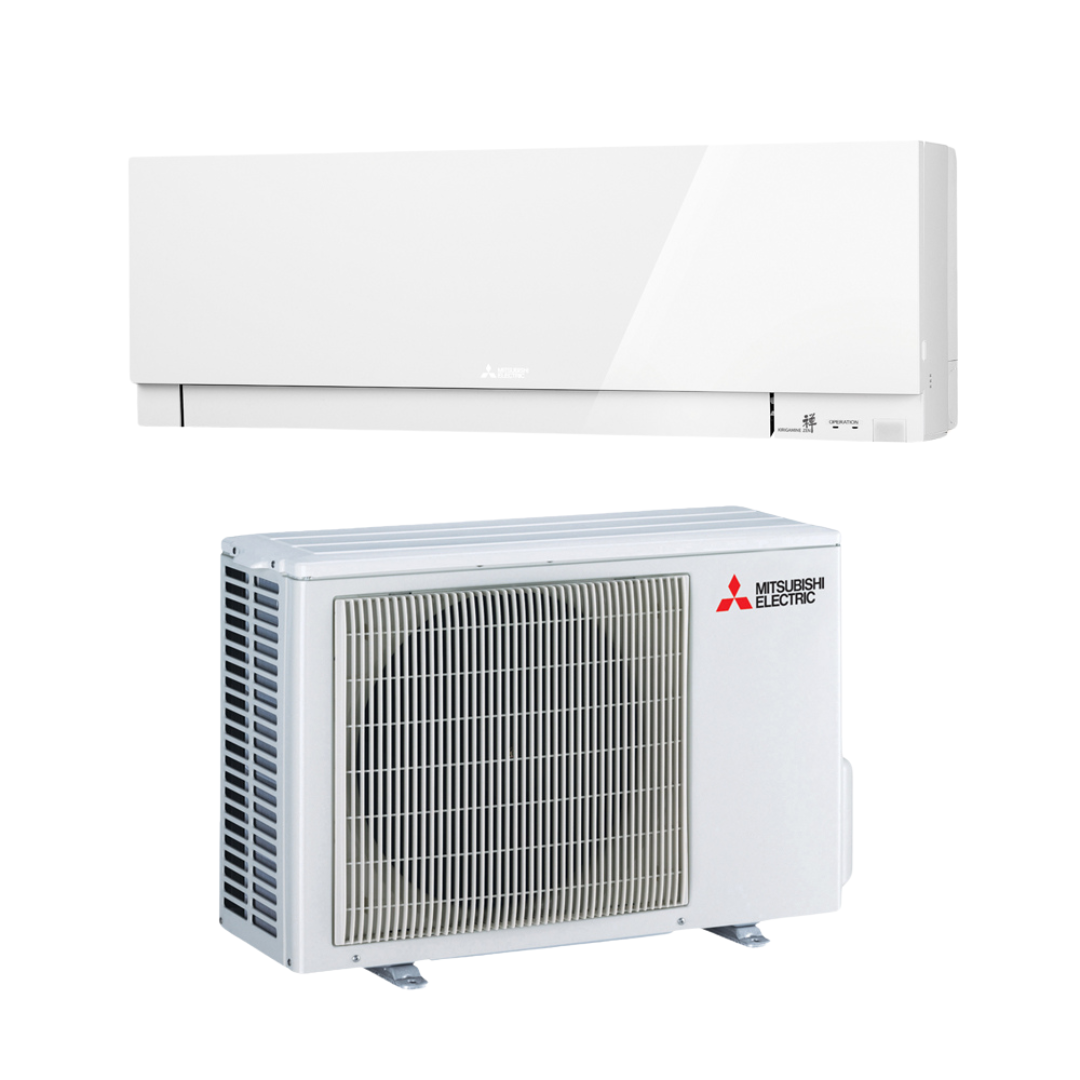

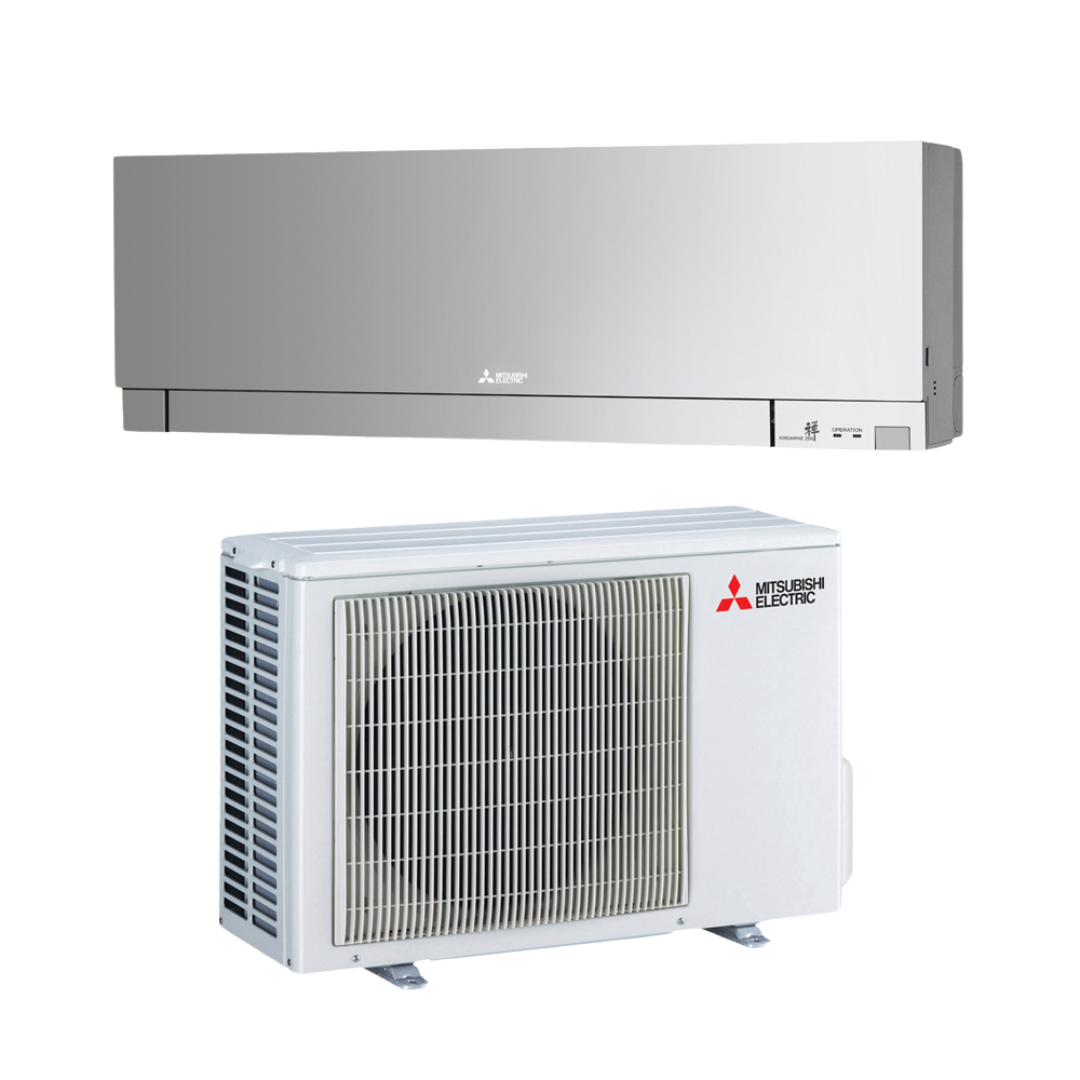

With indoor units available in Black, Silver and White, there is a colour option to suit all interior design styles.

  • Built in Wi-Fi interface enables system control & monitoring via the Mitsubishi Electric MELCloud app; plus voice control - compatible with Amazon Alexa or Google Assistant enabled devices
  • In-room air purification through our advanced V-Blocking filter, neutralising bacteria, viruses, allergens, dust and mould
  • Easy operation via a backlit controller with 7 day time clock
  • Compatible with Plasma Quad Connect - an innovative, bolt-on air purifying device which neutralises viruses, bacteria, allergens, PM2.5, mould and dust

A single split system kit contains:

  • 1 x Indoor Unit
  • 1 x Outdoor Unit
  • 1 x Infrared Remote Control

**UK F-GAS laws state you must provide us with details of the F-GAS registered engineer you will be using BEFORE we can dispatch any split systems**

These systems are not held in stock and are ordered directly from the manufacturer as required. Please contact us for availability before ordering to ensure delivery is possible when it shall be required.

Images are for reference only

Specification

  • Indoor Unit:
  • Heating Capacity (kW): 1.3-5.1
  • Cooling Capacity (kW): 1.1-4.0
  • COP (W): 4.21
  • EER (W): 3.85
  • SCOP (W): 4.6
  • SEER (W): 8.8
  • Heating Max Airflow (I/s): 212
  • Cooling Max Airflow (I/s): 175
  • Sound Power (dBA): 60
  • Dimensions (mm): 885 x 195 x 299
  • Weight (kg): 11.5
  • :

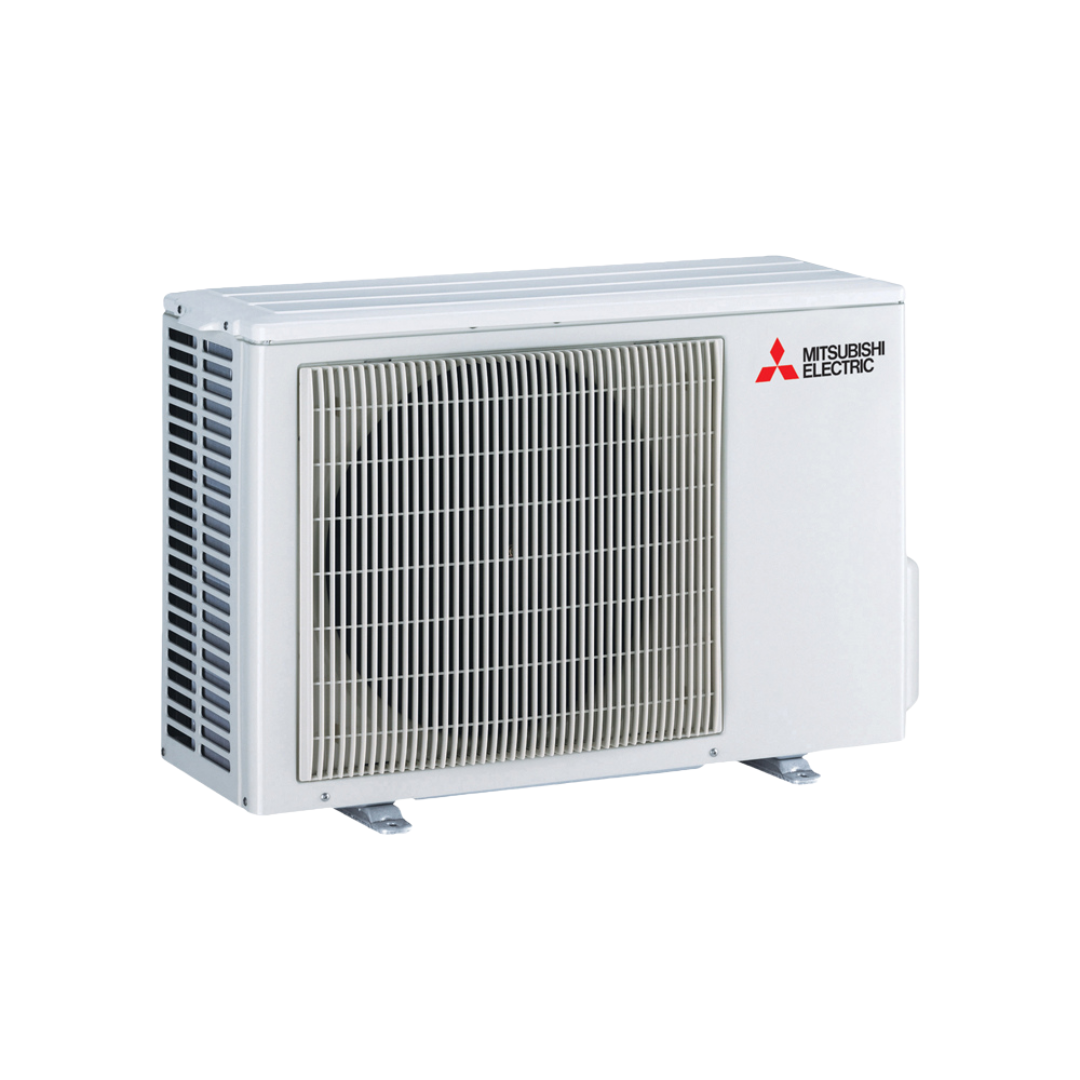

  • Outdoor Unit:
  • Sound Power (dBA): 62
  • Dimensions (mm): 800 x 285 x 550
  • Weight (kg): 34
  • Power Supply: 1 / 220-240 / 50
  • System Power Input (Heating/Cooling) (kW): 0.95/0.91
  • Starting Current (A): 4.4
  • Running Current (A): 6.8
  • Max Pipe Length (m): 20
  • Max Pipe Height (m): 12

Video

Installation Info

The below information is a general guide and not for any specific air con system. The installation will require the services of an F-GAS registered engineer, who will be trained and have experience of installing these systems

Indoor Unit - Pre-checks

  • Ensure there is no source of heat or steam nearby.
  • Ensure there is nothing stopping the installation of the unit before drilling holes.
  • Do not mount above a shelf or a cupboard that could restrict air circulation.
  • For the unit to work effectively in cooling mode, it must be mounted 2m off the ground or above head height.
  • Make sure the installation wall is suitably secure.

Outdoor Unit – Pre-Checks

  • If you erect a canopy to protect the unit from rain and sun, DO NOT obstruct the heating dispersion for the condenser.
  • Don't keep animals or plants near the outdoor unit as the hot and cold air discharge will cause discomfort.
  • Make sure to have the distance specified in the installation manual (provided by each manufacturer) between ceiling, wall, furniture and other obstacles.
  • Do not mount near flammable gas tanks.
  • The mounting brackets/mounting plate or mounting feet for the unit must be secure, flat and level.
  • The outdoor unit must be secure, flat and level.

Installation Of The Air Conditioning System

Your chosen F-GAS registered engineer will aid you to select the best location for the indoor unit (Evaporator) and outdoor unit (Condenser) to be positioned.

You may also need to employ the services of an electrician, to supply mains power to the outdoor unit’s location. If in doubt, discuss this with your chosen air conditioning engineer.

The engineer will likely book the installation in as a half day or full day job, depending on the chosen locations and complexities of the installation.

They will usually supply all parts and sundries required to complete the job, as most systems available are only supplied with an indoor unit, an outdoor unit and a remote control. There are various extra parts required to install an air conditioning system, this can include:

  1. Brackets or Feet
  2. Pipework and Lagging
  3. Electrical Cable
  4. Trunking
  5. Condensate Pumps
  6. Fixings and Fasteners
  7. Additional Refrigerant
  8. Plus many more items, depending on the type of system(s) being installed

It is best to speak with the engineer when discussing the quote given to carry out the installation, to see what is included.

Specialist tools are required to commission an air con system which your engineer will bring with them to install you system. Systems must be strength and pressure tested and held on a vacuum for long periods of time, to ensure they are going to operate effectively as possible and eliminate the risk of leaking refrigerant into the atmosphere.

Upon completion of the installation the engineer should issue you an F-GAS Commission Certificate.

Tech Sheets

Reviews (0)

We are the UK's leading supplier of air conditioning

Catering to heating and cooling requirements in residential and commercial spaces.

A commitment to customer satisfaction

We strive to provide a reliable, professional, and friendly service. As a prominent renewable energy supplier in Britain, we offer competitive prices without compromising on energy efficiency. Our extensive range of climate control products ensures we cater to all domestic and commercial requirements, making us your go-to destination for heating and cooling solutions.

  • Buyer guides

    We know air conditioning is full or jargon. Our buyer guides can get you on track.

  • Installation help

    Read our installation info to help you understand what is involved.

  • Chat to us

    If you need assistance with any of our products, our team is on-hand.

Mitsubishi Electric

Mitsubishi Electric EF 3.5kW Air Conditioning System

High Street: £1,589.99 High Street: £1,324.99
Our Price:
£1,124.99 Inc. VAT £937.49 Exc. VAT

Summary

The ZEN to keep you felling zen

Cooling Info

1.1-4.0kW

Heating Information

1.3-5.1kW

Energy level

Energy Rating = A+++
COP = 4.21
SCOP =4.60
EER = 3.85
SEER = 8.80

Noise level

60dB

Suitable for room sizes

Up to 30m²

Dimensions & weight

Indoor 885 x 195 x 299mm
Indoor 11.5kg
Outdoor 800 x 285 x 550mm
Outdoor 34kg

Smart features

WiFi

Color
